Ref: 159406

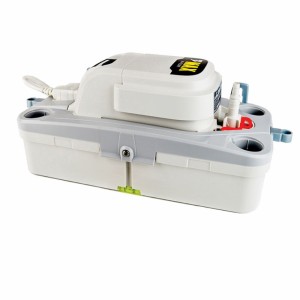

Aspen Max Hi Flow Condensate Pump


Login to view prices.

46.36 (Ex VAT)

Replaces the discontinued Hi Flow 1 & 2 litre pumps
Low profile condensate removal tank pump
Brought to you by Aspen, the market leader in condensate removal, the new and improved Hi-Flow tank pump boasts many exciting features - all of which make the MAX Hi-Flow the best tank pump in its class.
As with the entire Aspen range you can be assured of unsurpassed build quality and performance as standard; as well as the pump being the safest and quietest on the market.
The MAX Hi-Flow keeps a low profile at only 134mm high, 144mm wide, by 285mm long.
The only pump on the market with IP24 rating. Being splash proof allows for safe operating even in the event of water leaks near the pump.
On the inside, the motor and impeller system has been configured to achieve the quietest operating noise level, 44 dB(A), of any tank pump currently on the market.
KEY FEATURES:
- IP24 - Splash proof
- Easy access tank
- Built in spirit level
- Plug & play
SUITABILITY:
- Up to 733kW / 2.5m Btu/h
- Ducted units; Floor standing & Chassis units; Cassette units

  • Manufacturers Code: FP3349
  • Aspen Max Hi Flow Condensate Pump

    • Height: 134 mm
    • Width: 285 mm
    • Depth: 144 mm
    • Weight: 2.16 kg
    • Voltage: 230 v
    • Flow 550 L/hr
    • Head 5 m
    • Lift m
    • Tank Capacity 1.7 lt
    • Sensor
    • Sound Level 44 dBA
    • Manufacturers Code: FP3349

    Aspen Max Hi Flow Condensate Pump Downloads

    PDF Specification

    PDF Instructions
