Ref: 96906

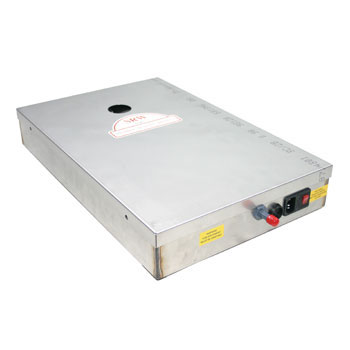

DD4 Dairy/Display Case pump drain tray with a


Login to view prices.

215.00 (Ex VAT)

The DD4 Dairy/Display Drain Tray has a heavy duty 1.2mm stainless steel casing and lid. Ultra low 75mm profile. Water entry via top of lid or using alternate end feed 1 1/4 inch pipe connection. High performance low voltage positive displacement diaphragm pump capable of 228 litres per hour max flow rate. Large capacity 5 litre tank to cope with defrost surges. Removable Hot led power connector for cleaning with fused and switched mains socket, includes spare fuse in carrier. 240v alarm output via plug in connector, can power buzzer/light etc. Twin float switches allowing for pump and alarm on separate circuits for extra reliability. Intergral easy clean inlet filter with vertical lift preventing solid particles entering the pump. 3/8 hose outlet

DD4 Dairy/Display Case pump drain tray with a

70mm ( l ) x 303mm ( w ) x 72mm (h)

Inlet pipe size 32mm end / top entry

Construction: All stainless steel casing

Input voltage: 240v

Pump voltage: 12v dc

Safety features: Thermal overload and pressure switch

Pump: Positive displacement with internal fan, viton valves, santoprene, diaphragm.

Pump capacity: 204 litres hour at 6' head, 20' = 168 litres, 40' = 138 litres, 60' = 114 litres

Max pressure 40psi, max water temperature 40°c

Outlet size 3/8

Tray capacity: 6 litres
Control: Float level switch

Float switch alarm: 240v .05 output with 3 pin plug

Filter: Stainless mesh removable for cleaning

  • Height: 0 mm
  • Width: 0 mm
  • Depth: 0 mm
  • Weight: 5 kg

DD4 Dairy/Display Case pump drain tray with a Downloads

PDF Specification

spacer

click here for pdf information sheet
