Ref: 200802

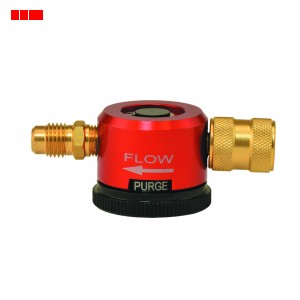

DP-1 Nitrogen purge tool


Login to view prices.

46.94 (Ex VAT)

The Diversitch DP-1 Nitrogen Purge Tool is a quick and easy way to purge copper pipes with nitrogen. Then, with a turn of the dial, quickly switch to a very low flow of nitrogen to properly braze the copper. It has a durable aluminum design so you can just throw it into your tool bag when you are done.
Standard Fittings
Quickly attaches to the outlet of a standard nitrogen regulator. Set the purge tool to off, connect standard 1/4 refrigerant hoses to tool, and in seconds you are ready to purge and braze.
Quick Change Dial
The Nitrogen Purge Tool from DiversiTech has a quick and easy 3 click position dial. Quickly switch between Purge, Braze, and Off settings to get the correct amount of nitrogen flow for each one. No fumbling with a flow indicator valve. Just click to purge or braze and you are good to go.
50 psi Inlet Pressure
Be sure you have the enough pressure to purge and braze properly. DiversiTechs Nitrogen Purge Tool is designed to operate with a 50psi inlet pressure. Maximum inlet pressure of 200psi.
Robust Design
The nitrogen purge tool from DiversiTech is designed to be tough and durable. Throw it into your tool bag. It wont break like nitrogen flow meters.
  • Manufacturers Code: DP-1
  • DP-1 Nitrogen purge tool

    • Height: 0 mm
    • Width: 0 mm
    • Depth: 0 mm
    • Weight: 0 kg
    • Manufacturers Code: DP-1

    DP-1 Nitrogen purge tool Downloads

    PDF Specification

    PDF Data Sheet
