1914w Duty - Coldroom Max Volume 15m3.
Capacity at room temp -20c / 32c ambient.

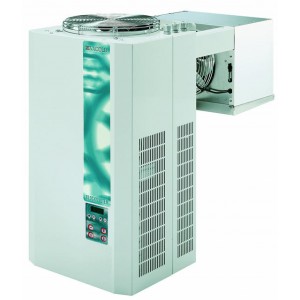

The Rivacold Blocksystem is contained in one housing, consisting of a condensing unit, evaporator and an electrical control panel. This solution enables to have a product easy to be used and installed with the maximum of versatility. The use of forefront technical solutions has enabled us to optimise the encumbrance of the machines by also improving their installation mode, especially in reduced dimension cold rooms.
Self-supporting casing in zinc-plated metal sheet, which is coated with epoxy powder
Front panel easy to be removed in order to guarantee an easy access to the components and a fast
Hermetic compressors with thermal motor protection
Electronic board that can be programmed according to different user requirements
Heat exchangers with copper and aluminium blocks
Condensation by air (optional by water)
Expansion by capillary tube or thermostatic valve
Automatic defrosting with programmable run, duration and frequency settings"Off cycle defrosting
(HBP), and hot gas defrosting (MBP, LBP)."
Integral evaporating condensing water tray, or condensing water direct discharge
Electronic control panel
Cold room light with 2,5m long cable
Door micro switch with 2,5m long cable
Door heater cable for LBP items with 2,5m long cable
High pressure switch
Evaporating water tray
Power supply cable (L=2,5m)
FTL020 G012 Rivacold Wall Mounted Freezer 3ph 1914w Duty - Coldroom Max Volume 15m3 Downloads
