The new generation of the Fieldpiece Recovery Machine makes recovery easier, faster, and better for the HVACR technician. The Fieldpiece Digital Recovery Machine has onboard system monitoring that adjusts motor
performance to handle liquid and run twice as fast on vapor. Plus, the new MR53 is ATEX Rated, which means it is compatible with A3 refrigerants, aside from A2L and A1 refrigerants. With a powerful presence on
the job site, the MR53 is a very lightweight, versatile, and portable player. With only 11kg to carry, the MR53 can easily be taken anywhere on site. Our Recovery Machine ensures that you can work as efficiently and quickly as possible at every job.
The Recovery Machine is s ATEX Rated, ensuring safe operation in potentially explosive environments With on-board system monitoring, this recovery machine is able to automatically adjust motor performance from 2000 to 3000 rpm to handle liquid and run twice as fast on vapor.
Automatically adjust motor performance
Designed to work with A3, A2L and A1
Single dial valve
Lightweight and portable design
ATEX Rated
Backlit LCD
Powerful 1 HP DC Motor
On-board system monitoring
Designed for the Technician:
Adjust motor performance automatically
On-board system monitoring
Automatically adjust motor performance from 2000 to 3000 rpm to handle liquid and run twice as fast on vapor
Liquid slugging is minimized and vapor recovery
is maximized
Designed for every job:
ATEX Rated to work with A3 Refrigerants
Lightweight and portable design of only 11 kg
Single dial valve
Easy-to-use gas ballast

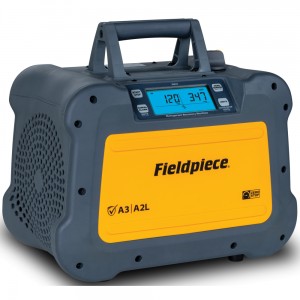

Manufacturers Code: MR53INT Fieldpiece MR53INT A3 Recovery Machine 230v - ATEX Rated
- Height: 0 mm
- Width: 0 mm
- Depth: 0 mm
- Weight: 0 kg
- For Use With A3, A2L, and A1 Refrigerants
- Display Backlit LCD with status messages
- Input Port High Pressure Cutof 26.0 bar (2600 kPa, 377 psig)
- Output Port High Pressure Cutof 38.5 bar (3850 kPa, 558 psig)
- Final Recovery Vacuum -0.51 bar (-38 cmHg, -14.9 inHg)
- Compressor Twin cylinder reciprocating (oil-less)
- Manufacturers Code: MR53INT
Fieldpiece MR53INT A3 Recovery Machine 230v - ATEX Rated Downloads
Specification
