Fieldpiece offers state-of-the-art digital manifolds that support A1,A2L and A3 Refrigerants.
- Integrate with Job Link® tools;
temperature compensated system tightness test
Weather resistant IP55 heavy duty design
4 Reasons why you need the SM382VINT:
1. Integrate with Job Link® tools
The wireless SM382VINT is the heart of every job as the Digital Manifold. All the Job Link® tools can be connected to the SM382VINT and with a 300m wireless range, you can find real-time, accurate measurements of all the Job Link® tools right on your Digital Manifold. Plus, you now have the option to connect a third JL3RH Psychrometer directly to the manifold. The on-board data logging feature streamlines your job and makes sure you can provide the customers with all the answers they need.
2, Support A1, A2L and A3 refrigerants
The SM382VINT has been designed to work with low GWP refrigerants and blends to comply with F-gas regulations. This high-tech Digital Manifold does not only help you do your work easier, faster, and better, but it also supports the environment.
3. Reliable, accurate, and personalized
Thanks to the temperature compensated system tightness test function, you never have to worry about inaccurate measurements when pressure testing a system. On top of that, the built in vacuum gauge provides you with all the vacuum related information you need to know. Plus, the SM382VINT is perfect for every technician with the language support of 12 total languages!
4. Heavy duty design
Robust and reliable. The improved manifold block with separated holders and ports for more durability, reinforced hook, an updated IP67 water resistance rating, and impact resistant light up screen ensure the SMAN® is able to withstand any conditions so you can keep doing your job easier, faster, and better.
Included in package:
SMAN® Refrigerant Manifold (3 Port)
(1) ANC82 Padded, Easy-Open Case
(2) TC24 Type K Pipe Clamp Thermocouples
(1) ATA1 Type K Bead Thermocouple w/Clip
(2) 5/16â Spare Hose Holder Fittings
(6) AA Alkaline Batteries

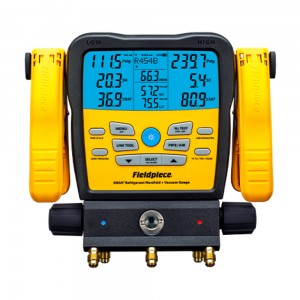

Manufacturers Code: SM382VINT Fieldpiece SM382VINT 3 Port SMAN Manifold With Micron Gauge
- Height: 0 mm
- Width: 0 mm
- Depth: 0 mm
- Weight: 0 kg
- Application: Refrigeration
- Display LCD (12.7 cm diagonal)
- Backlight Blue (adjustable duration)
- Auto Power Off 30 minutes of inactivity (adjustable)
- Maximum Manifold Pressure: 5998 kPa (870 Psig)
- Battery Type: 6 x AA alkaline
- Battery Life 405 hours
- Manufacturers Code: SM382VINT
Fieldpiece SM382VINT 3 Port SMAN Manifold With Micron Gauge Downloads
Specification
