Ref: 210102

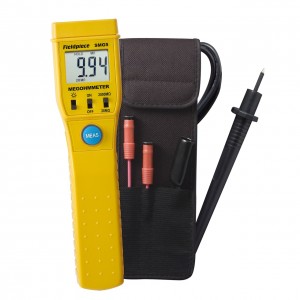

Fieldpiece SMG5 - Digital Megohm Meter


Login to view prices.

83.50 (Ex VAT)

The Fieldpiece Digital Megohm Meter, model SMG5, is a compact standalone meter designed for checking HVAC compressor insulation. The SMG5 provides a 1000V voltage source, monitors current, and displays the resistance between the test points. Maximum current output is <1mA. It can be used to determine the condition of insulation from winding to ground in a motor, compressor, or transformer. Includes a case, alligator clip lead tip and leads with removable tips.
To test resistance, a DMM supplies low voltage (<1V) to the test points and is capable of delivering only a few milliamps. Its not a high enough voltage to detect high resistance problems that might indicate moisture and other contaminants and its not enough current to measure lower values of resistance.
- 1000VDC voltage source
- Measure up to 2000 megohm
- Backlit LCD
- Predict compressor failure
- Auto-off to extend battery life
- Case, alligator clip, leads with removable tips
  • Manufacturers Code: SMG5
  • Fieldpiece SMG5 - Digital Megohm Meter

    • Height: 0 mm
    • Width: 0 mm
    • Depth: 0 mm
    • Weight: 0 kg
    • Application: Electrical measurement
    • Manufacturers Code: SMG5

    Fieldpiece SMG5 - Digital Megohm Meter Downloads

    PDF User Manual
