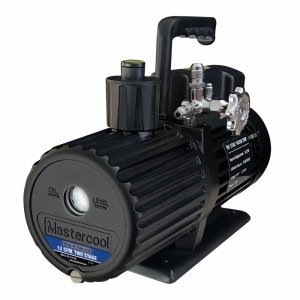

Mastercool Black Series 12 CFM Vacuum Pump

Mastercool’s “Black Series” vacuum pumps are durable and time tested to stand up to the most grueling conditions and will provide years of reliable service. This vacuum pump provides the power and mobility necessary for a wide variety of applications.
FEATURES:
Refined cartridge machining process creates an improved surface finish extending the longevity of the pump life
Expanded internal oil path creates less friction and ultimately less heat
Upgraded seals insure maximum vacuum
U.S. designed and tested
Easy grip handle
Gas ballast valve helps prevent oil contamination caused by high moisture
Easily removable vapor discharge/oil fill port
Large oil level sight glass with max/min level indicator
Easily accessible oil drain valve
Thermally protected motor with on/off rocker switch
Manifold valve isolates pump from the system when testing for leaks. Includes 3 inlet ports, 1/4″, 3/8″ SAE and 1/2″ ACME
High volume fan provides cool air to motor and pump
Check valve prevents oil back-flow
Cooling fins keep temperature cooler during extended operation
Large, light weight reinforced base for stable positioning
SPECIFICATION
Stages: 2
Free air displacement: 340 lit/min (60 Hz), 283 lit/min (50 Hz)
Ultimate vacuum: 15 microns
Motor: 1 HP
Pump speed: 1440 RPM
Electrical specs: 110/220 V, 50/60 Hz
Power: 220 V schuko cable
Weight: 35.5 lbs (16 kg)
Dimensions: 39 x 18 x 27 cm

Manufacturers Code: 90612-2V-220-BL
