Testo 560i Digital refrigerant scale with Bluetooth

testo 560i - Digital refrigerant scale with Bluetooth charging of refrigeration systems and heat pumps

Wireless connection and operation with Testo manifolds and testo Smart App via Bluetooth
All measured values for the charging process at a glance with storage of the measured data in the testo Smart App

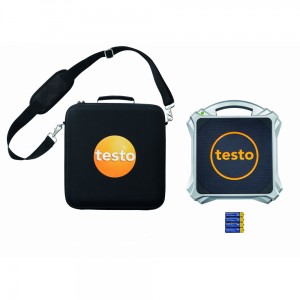

Particularly handy thanks to compact housing, low weight, practical carrying handle and sturdy shoulder bag
Compatible with digital manifolds testo 557s/550s/550i and testo 557/550
Measuring range 0.00 to 100.00 kg
Accuracy
(+22 °C, ± 1 digit)
Operating temperature -5 °C to +25 °C:
≤ ±(10 g + 0.03 %rdg) (0 to 30 kg)
≤ ±(10 g + 0.05 %rdg) (30 to 100 kg)
other working temperature:
≤ ±20 g (0 to 10 kg)
≤ ±(10 g + 0.15 %rdg) (10 to 100 kg)
Solution 0.01 kg
Ambient humidity 0 to 80 %RH
General technical data
Connection Bluetooth 4.2
Bluetooth® range >30 m free field
Operating temperature -10 °C to +50 °C / +14 °F to +122 °F
Storage temperature -10 °C to +50 °C / +14 °F to +122 °F
Dimensions 310 x 287 x 58 mm
Weight 4.36 kg (incl. batteries and bag)
Protection class IP44
Battery type 4 AA alkaline batteries
Battery life > 70 h at +25 °C
100kg capacity with 10 gram resolution

Manufacturers Code: 0564 1560
