Ref: 198002

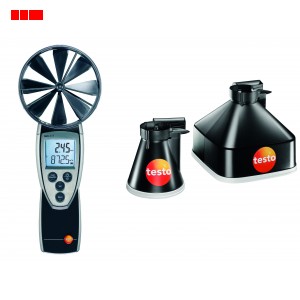

testo 417 - Vane Anemometer (plus Funnel set)

288.15 (Ex VAT)

The compact testo 417 anemometer kit with built-in flow/temperature vane ? 100 mm to measure flow speed, volume flow and temperature. Volume flow is shown directly in the display. Accurate volume flow calculation thanks to easy input of duct area. In addition, it is easy to switch to the current temperature reading. The flow direction, i.e. drawn in or blowing, is visible in the display. Timed and multi-point mean calculation provide information on mean volume flow, flow speed and temperature readings. The optional funnel set facilitates efficient measurements at ventilator grilles and disc outlets. Min/max values can also be shown in the display. Current readings can be frozen in the display using the Hold function.
- Direction of flow recognition
- Temperature, flow and volume flow measurement
- Multi-point and timed mean calculation
- Max/min values
- Hold button to freeze readings
- Display light
- Auto Off function
- Built-in ? 100 mm vane
- Flow can be measured in m/s or fpm and Volume in m3h, l/s or cfm
Includes x2 Funnels For Flow Measurements - 200 x 200 mm / 330 x 330 mm.
  • Manufacturers Code: 0563 4171
  • testo 417 - Vane Anemometer (plus Funnel set)

    • Height: 0 mm
    • Width: 0 mm
    • Depth: 0 mm
    • Application: Climate
    • Manufacturers Code: 0563 4171

    testo 417 - Vane Anemometer (plus Funnel set) Downloads

    PDF Datasheet

    PDF Instruction Manual
