Ref: 237202

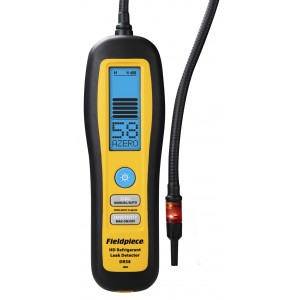

Fieldpiece DR58 Leak Detector


Login to view prices.

£242.00 (Ex VAT)

One-of-a-kind by design.
Since it’s a Fieldpiece, the DR58 Heated Diode Refrigerant Leak Detector is full of the features you need. It’s also designed to handle the abuse that most leak detectors can’t with an impact resistant IP54-certified body that fits easily in your hand.
Clearly see even the smallest leak.
Sniffing leaks at less than 0.03 oz/yr (1g/a), the DR58 detects all HFC, CFC, HCFC, HFO and blended refrigerants with superior sensitivity at detecting R410A refrigerant. On the DR58’s new, bright backlit LCD screen you’ll see easy-to-read bar graphs, numeric readings and customizable dual alarms. No more guessing about what’s leaking. Also, it can both automatically and manually zero to refrigerant gas concentrations giving you total control.
Detects faster. Lasts longer.
The DR58 boasts an 18-hour battery life that’ll last longer than you will on the job site. Yes, it’s built to perform. Soap bubble solutions can take several minutes to form visible bubbles and messy UV dyes can take several hours to travel through a running system.
Sensor Type: Heated diode
Sensor Life: 300 hours typical
Sensitivity Levels: High, medium, low (selectable)
Maximum Sensitivity: 0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion
Detection Feedback: Red tip LED, LCD bar graph, LCD digits, beeper
Refrigerants: HFC, HCFC, CFC, HFOs, and blends
Response Time: <1 seconds typical
Recovery Time: <10 seconds typical
Battery Type: 3.7 VDC (nominal) 2600mAh, non-replaceable
Charge Time: 6 hours typical with included charger.
Battery Life: 18 hours typical, backlight off
Auto Power Off: 10 minutes without detection or button press
Operating Environment: 32°F to 104°F (0°C to 40°C); < 75% RH (non-condensing)
Storage Temperature: -4°F to 140°F (-20°C to 60°C); < 80% RH
Weight: 14 oz (400g)
Water Resistance: Designed to IP54
US Patent: www.fieldpiece.com/patents
  • Manufacturers Code: DR58
  • Fieldpiece DR58 Leak Detector

    • Height: 0 mm
    • Width: 0 mm
    • Depth: 0 mm
    • Weight: 0 kg
    • Application: Leak Detection
    • Manufacturers Code: DR58

    Fieldpiece DR58 Leak Detector Downloads

    PDF Instructions
